CohortConstructor

Build and Curate Study Cohorts in R Using the OMOP Common Data Model

2025-06-12

Introduction

CohortConstructor package is designed to support cohort building pipelines in R, using data mapped to the OMOP Common Data Model.

The code is publicly available in OHDSI’s GitHub repository CohortConstructor.

CohortConstructor v0.4.0 is available in CRAN.

Vignettes with further information can be found in the package website.

CohortConstructor pipeline

1) Create base cohorts

Cohorts defined using clinical concepts (e.g., asthma diagnoses) or demographics (e.g., females aged >18)

2) Cohort-curation

Tranform base cohorts to meet study-specific inclusion criteria.

Function Sets

Base cohorts Cohort construction based on clinical concepts or demographics.

Requirements and Filtering Demographic restrictions, event presence/absence conditions, and filtering specific records.

Update cohort entry and exit Adjusting entry and exit dates to align with study periods, observation windows, or key events.

Transformation and Combination Merging, stratifying, collapsing, matching, or intersecting cohorts.

Base cohorts

Functions to build base cohorts

demographicsCohort()

conceptCohort()

measurementCohort()

deathCohort()

Demographics based - Example

Two cohorts, females and males, both aged 18 to 60 years old, with at least 365 days of previous observation in the database.

cdm$age_cohort <- demographicsCohort(
  cdm = cdm,
  ageRange = c(18, 60),
  sex = c("Female", "Male"),
  minPriorObservation = 365,
  name = "age_cohort"
)

settings(cdm$age_cohort)

# A tibble: 2 × 5
  cohort_definition_id cohort_name    age_range sex    min_prior_observation
                 <int> <chr>          <chr>     <chr>                  <dbl>
1                    1 demographics_1 18_60     Female                   365
2                    2 demographics_2 18_60     Male                     365

Demographics based - Example

cohortCount(cdm$age_cohort)

# A tibble: 2 × 3
  cohort_definition_id number_records number_subjects
                 <int>          <int>           <int>
1                    1           1373            1373
2                    2           1321            1321

attrition(cdm$age_cohort)

# A tibble: 8 × 7
  cohort_definition_id number_records number_subjects reason_id reason
                 <int>          <int>           <int>     <int> <chr>
1                    1           2694            2694         1 Initial qualify…
2                    1           1373            1373         2 Sex requirement…
3                    1           1373            1373         3 Age requirement…
4                    1           1373            1373         4 Prior observati…
5                    2           2694            2694         1 Initial qualify…
6                    2           1321            1321         2 Sex requirement…
7                    2           1321            1321         3 Age requirement…
8                    2           1321            1321         4 Prior observati…
# ℹ 2 more variables: excluded_records <int>, excluded_subjects <int>

Demographics based - Example

To better visualise the attrition, we can use the package CohortCharacteristics to either create a flow diagram or a formatted table:

cdm$age_cohort |> summariseCohortAttrition() |> plotCohortAttrition(type = "png")

Demographics based - Example

cdm$age_cohort |> summariseCohortAttrition() |> tableCohortAttrition()

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
Synthea; demographics_1
Initial qualifying events	2,694	2,694	0	0
Sex requirement: Female	1,373	1,373	1,321	1,321
Age requirement: 18 to 60	1,373	1,373	0	0
Prior observation requirement: 365 days	1,373	1,373	0	0
Synthea; demographics_2
Initial qualifying events	2,694	2,694	0	0
Sex requirement: Male	1,321	1,321	1,373	1,373
Age requirement: 18 to 60	1,321	1,321	0	0
Prior observation requirement: 365 days	1,321	1,321	0	0

Concept based - Example

Let’s create a cohort of medications that contains two drugs: diclofenac, and acetaminophen.

Get relevant codelists with CodelistGenerator

drug_codes <- getDrugIngredientCodes(
  cdm = cdm,
  name = c("diclofenac", "acetaminophen"),
  nameStyle = "{concept_name}"
)
drug_codes


- acetaminophen (7 codes)
- diclofenac (1 codes)

Concept based - Example

Create concept based cohorts

cdm$medications <- conceptCohort(
  cdm = cdm,
  conceptSet = drug_codes,
  name = "medications"
)

settings(cdm$medications)

# A tibble: 2 × 4
  cohort_definition_id cohort_name   cdm_version vocabulary_version
                 <int> <chr>         <chr>       <chr>
1                    1 acetaminophen 5.3         v5.0 18-JAN-19
2                    2 diclofenac    5.3         v5.0 18-JAN-19

Concept based - Example

Attrition

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
acetaminophen
Initial qualifying events	14,205	2,679	0	0
Record start <= record end	14,205	2,679	0	0
Record in observation	14,205	2,679	0	0
Non-missing sex	14,205	2,679	0	0
Non-missing year of birth	14,205	2,679	0	0
Merge overlapping records	13,908	2,679	297	0
diclofenac
Initial qualifying events	850	850	0	0
Record start <= record end	850	850	0	0
Record in observation	830	830	20	20
Non-missing sex	830	830	0	0
Non-missing year of birth	830	830	0	0
Merge overlapping records	830	830	0	0

Concept based - Example

Cohort codelist as an attribute

attr(cdm$medications, "cohort_codelist")

# Source:   table<my_study_medications_codelist> [?? x 4]
# Database: DuckDB v1.3.0 [martaa@Windows 10 x64:R 4.4.1/C:\Users\martaa\AppData\Local\Temp\RtmpUfQNCz\file8974d225ac5.duckdb]
  cohort_definition_id codelist_name concept_id codelist_type
                 <int> <chr>              <int> <chr>
1                    1 acetaminophen    1125315 index event
2                    1 acetaminophen    1127078 index event
3                    1 acetaminophen    1127433 index event
4                    1 acetaminophen   40229134 index event
5                    1 acetaminophen   40231925 index event
6                    1 acetaminophen   40162522 index event
7                    1 acetaminophen   19133768 index event
8                    2 diclofenac       1124300 index event

Your turn!

Get started: connecto to Eunomia

# Load relevant packages
library(CDMConnector)
library(CodelistGenerator)
library(CohortConstructor)
library(CohortCharacteristics)
library(dplyr)


# Download Eunomia
requireEunomia()

# Create duckdb connection with Eunomia
con <- DBI::dbConnect(duckdb::duckdb(), dbdir = eunomiaDir())

# Create CDM reference object
cdm <- cdmFromCon(
  con,
  cdmSchema = "main",
  writeSchema = "main",
  writePrefix = "my_study_"
)

Exercise 1 - Base cohorts

Create a cohort of aspirin use.

How many records does it have? And how many subjects?

CDM name	Variable name	Estimate name	Cohort name
CDM name	Variable name	Estimate name	aspirin
Synthea	Number records	N	4,379
	Number subjects	N	1,927

Requirements and Filtering

Functions to apply requirements and filter

On demographics
- requireDemographics()
- requireAge()
- requireSex()
- requirePriorObservation()
- requireFutureObservation()

On cohort entries

Require presence or absence based on other cohorts, concepts, and tables

Other
- requireInDateRange()
- requireMinCohortCount()

Requirement functions - Example

We can apply different inclusion criteria using CohortConstructor’s functions in a pipe-line fashion. For instance, in what follows we require
- only first record per person
- subjects 18 years old or more at cohort start date
- only females
- at least 30 days of prior observation at cohort start date

cdm$medications_requirement <- cdm$medications |>
  requireIsFirstEntry(name = "medications_requirement") |>
  requireDemographics(
    ageRange = list(c(18, 150)),
    sex = "Female",
    minPriorObservation = 30
  )

Requirement functions - Example

Attrition Acetaminophen

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
acetaminophen
Initial qualifying events	14,205	2,679	0	0
Record start <= record end	14,205	2,679	0	0
Record in observation	14,205	2,679	0	0
Non-missing sex	14,205	2,679	0	0
Non-missing year of birth	14,205	2,679	0	0
Merge overlapping records	13,908	2,679	297	0
Restricted to first entry	2,679	2,679	11,229	0
Age requirement: 18 to 150	309	309	2,370	2,370
Sex requirement: Female	176	176	133	133
Prior observation requirement: 30 days	176	176	0	0
Future observation requirement: 0 days	176	176	0	0

Requirement functions - Example

Attrition Diclofenac

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
diclofenac
Initial qualifying events	850	850	0	0
Record start <= record end	850	850	0	0
Record in observation	830	830	20	20
Non-missing sex	830	830	0	0
Non-missing year of birth	830	830	0	0
Merge overlapping records	830	830	0	0
Restricted to first entry	830	830	0	0
Age requirement: 18 to 150	830	830	0	0
Sex requirement: Female	435	435	395	395
Prior observation requirement: 30 days	435	435	0	0
Future observation requirement: 0 days	435	435	0	0

Requirement functions - Example

Now, we only want to keep those exposures coinciding with at least one healthcare visit on that same day:

cdm$medications_requirement <- cdm$medications_requirement |>
  requireTableIntersect(
    tableName = "visit_occurrence",
    window = c(0, 0),
    intersections = c(1, Inf)
  )

Requirement functions - Example

Attrition Acetaminophen

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
acetaminophen
Initial qualifying events	14,205	2,679	0	0
Record start <= record end	14,205	2,679	0	0
Record in observation	14,205	2,679	0	0
Non-missing sex	14,205	2,679	0	0
Non-missing year of birth	14,205	2,679	0	0
Merge overlapping records	13,908	2,679	297	0
Restricted to first entry	2,679	2,679	11,229	0
Age requirement: 18 to 150	309	309	2,370	2,370
Sex requirement: Female	176	176	133	133
Prior observation requirement: 30 days	176	176	0	0
Future observation requirement: 0 days	176	176	0	0
In table visit_occurrence between 0 & 0 days relative to cohort_start_date between 1 and Inf	1	1	175	175

Requirement functions - Example

Attrition Diclofenac

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
diclofenac
Initial qualifying events	850	850	0	0
Record start <= record end	850	850	0	0
Record in observation	830	830	20	20
Non-missing sex	830	830	0	0
Non-missing year of birth	830	830	0	0
Merge overlapping records	830	830	0	0
Restricted to first entry	830	830	0	0
Age requirement: 18 to 150	830	830	0	0
Sex requirement: Female	435	435	395	395
Prior observation requirement: 30 days	435	435	0	0
Future observation requirement: 0 days	435	435	0	0
In table visit_occurrence between 0 & 0 days relative to cohort_start_date between 1 and Inf	0	0	435	435

Your turn!

Exercise 2 - Requirement and filtering

Create a new cohort named “aspirin_last” by applying the following criteria to the base aspirin cohort:

Include only the last drug exposure for each subject.
Include exposures that start between January 1, 1960, and December 31, 1979.
Exclude individuals with an amoxicillin exposure in the 7 days prior to the aspirin exposure.

Move to the next slide to see the attrition.

Exercise 2 - Requirement and filtering

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
Synthea; aspirin
Initial qualifying events	4,380	1,927	0	0
Record start <= record end	4,380	1,927	0	0
Record in observation	4,380	1,927	0	0
Non-missing sex	4,380	1,927	0	0
Non-missing year of birth	4,380	1,927	0	0
Merge overlapping records	4,379	1,927	1	0
Restricted to last entry	1,927	1,927	2,452	0
cohort_start_date after 1960-01-01	1,511	1,511	416	416
cohort_start_date before 1979-12-31	1,174	1,174	337	337
Not in concept amoxicillin between -7 & 0 days relative to cohort_start_date	1,163	1,163	11	11

Update cohort entry and exit

Functions to update cohort start and end dates

Cohort exit
- exitAtObservationEnd()
- exitAtDeath()
- exitAtFirstDate()
- exitAtLastDate()

Cohort entry
- entryAtFirstDate()
- entryAtLastDate()

Trim start and end dates
- trimDemographics()
- trimToDateRange()

Pad start and end dates
- padCohortDate()
- padCohortEnd()
- padCohortStart()

Update cohort entry and exit - Example

We can trim start and end dates to match demographic requirements.
For instance, cohort dates can be trimmed so the subject contributes time while:
- Aged 20 to 40 years old
- Prior observation of at least 365 days

cdm$medications_trimmed <- cdm$medications |>
  trimDemographics(
    ageRange = list(c(20, 40)),
    minPriorObservation = 365,
    name = "medications_trimmed"
  )

Update cohort entry and exit - Example

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
acetaminophen
Initial qualifying events	14,205	2,679	0	0
Record start <= record end	14,205	2,679	0	0
Record in observation	14,205	2,679	0	0
Non-missing sex	14,205	2,679	0	0
Non-missing year of birth	14,205	2,679	0	0
Merge overlapping records	13,908	2,679	297	0
Age requirement: 20 to 40	4,049	2,124	9,859	555
Prior observation requirement: 365 days	4,049	2,124	0	0

Your turn!

Exercise 3 - Update cohort entry and exit

Create a cohort of ibuprofen. From it, create an “ibuprofen_death” cohort which includes only subjects that have a future record of death in the database, and update cohort end date to be the death date.

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
Synthea; ibuprofen
Initial qualifying events	2,148	1,451	0	0
Record start <= record end	2,148	1,451	0	0
Record in observation	2,148	1,451	0	0
Non-missing sex	2,148	1,451	0	0
Non-missing year of birth	2,148	1,451	0	0
Merge overlapping records	2,148	1,451	0	0
No death recorded	0	0	2,148	1,451
Exit at death	0	0	0	0

Transformation and Combination

Functions for Cohort Transformation and Combination

Split cohorts
- yearCohorts()
- stratifyCohorts()

Combine cohorts
- unionCohorts()
- intersectCohorts()

Filter cohorts
- subsetCohorts()
- sampleCohorts()

Match cohorts
- matchCohorts()

Concatenate entries
- collapseCohorts()

Copy and rename cohorts
- renameCohort()
- copyCohorts()

Cohort combinations - Example

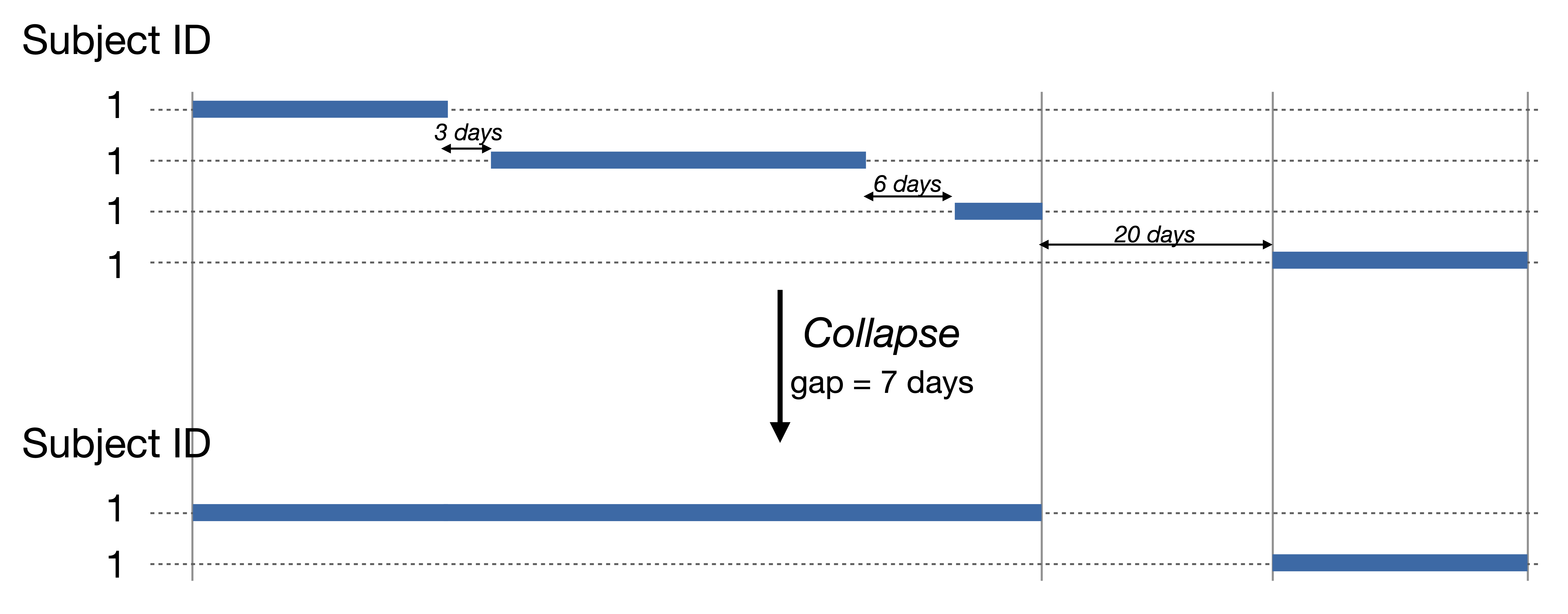

Collapse drug exposures that are within a gap of 7 days.

Cohort combinations - Example

cdm$medications_collapsed <- cdm$medications |>
  collapseCohorts(gap = 7, name = "medications_collapsed")

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
acetaminophen
Initial qualifying events	14,205	2,679	0	0
Record start <= record end	14,205	2,679	0	0
Record in observation	14,205	2,679	0	0
Non-missing sex	14,205	2,679	0	0
Non-missing year of birth	14,205	2,679	0	0
Merge overlapping records	13,908	2,679	297	0
Collapse cohort with a gap of 7 days.	13,899	2,679	9	0

Cohort combinations - Example

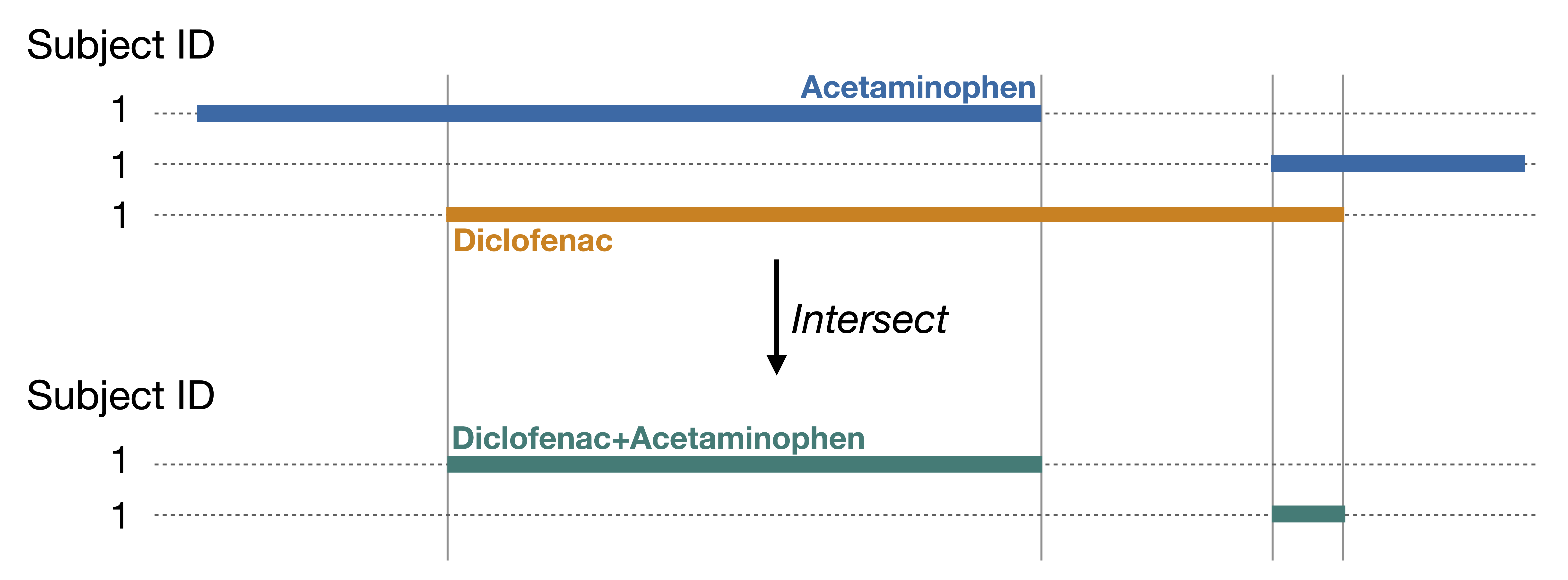

Create a new cohort that contains people who had an exposure to both diclofenac and acetaminophen at the same time using.

Cohort combinations - Example

cdm$intersection <- cdm$medications_collapsed |>
  CohortConstructor::intersectCohorts(name = "intersection")

settings(cdm$intersection)

# A tibble: 1 × 5
  cohort_definition_id cohort_name                gap acetaminophen diclofenac
                 <int> <chr>                    <dbl>         <dbl>      <dbl>
1                    1 acetaminophen_diclofenac     0             1          1

Cohort combinations - Example

attr(cdm$intersection, "cohort_codelist")

# Source:   table<my_study_intersection_codelist> [?? x 4]
# Database: DuckDB v1.3.0 [martaa@Windows 10 x64:R 4.4.1/C:\Users\martaa\AppData\Local\Temp\RtmpUfQNCz\file8974d225ac5.duckdb]
  cohort_definition_id codelist_name concept_id codelist_type
                 <int> <chr>              <int> <chr>
1                    1 acetaminophen    1125315 index event
2                    1 acetaminophen    1127078 index event
3                    1 acetaminophen    1127433 index event
4                    1 acetaminophen   40229134 index event
5                    1 acetaminophen   40231925 index event
6                    1 acetaminophen   40162522 index event
7                    1 acetaminophen   19133768 index event
8                    1 diclofenac       1124300 index event

Your turn!

Exercise 4 - Transformation and Combination

From the ibuprofen base cohort (not subseted to death), create five separate cohorts. Each cohort should include records for one specific year from the following list: 1975, 1976, 1977, 1978, 1979, and 1980.

How many records and subjects are in each cohort?

CDM name	Variable name	Estimate name	Cohort name
CDM name	Variable name	Estimate name	ibuprofen_1975	ibuprofen_1976	ibuprofen_1977	ibuprofen_1978	ibuprofen_1979	ibuprofen_1980
Synthea	Number records	N	71	64	60	75	66	63
	Number subjects	N	68	61	60	74	66	63

Exercise 5

Use CohortConstructor to create a cohort with the following criteria:

Users of diclofenac
Females aged 16 or older
With at least 365 days of continuous observation prior to exposure
Without prior exposure to amoxicillin
With cohort exit defined as first discontinuation of exposure. An exposure being define as recorded exposures within 7-days gap

Move to the next slide to see the attrition.

Exercise 5

Reason	Variable name
Reason	number_records	number_subjects	excluded_records	excluded_subjects
Synthea; diclofenac
Initial qualifying events	850	850	0	0
Record start <= record end	850	850	0	0
Record in observation	830	830	20	20
Non-missing sex	830	830	0	0
Non-missing year of birth	830	830	0	0
Merge overlapping records	830	830	0	0
Age requirement: 16 to 150	830	830	0	0
Sex requirement: Female	435	435	395	395
Prior observation requirement: 365 days	435	435	0	0
Future observation requirement: 0 days	435	435	0	0
Not in concept amoxicillin between -Inf & -1 days relative to cohort_start_date	161	161	274	274
Collapse cohort with a gap of 7 days.	161	161	0	0
Restricted to first entry	161	161	0	0

Thank you!

Questions?
